Plastic Blue Casing Nano Plus Amorphous Three Phase Core Type Transformer 60A

Brand Name : WSD

Model Number : WSD-731

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200000/day

Delivery Time : 14-21days

Packaging Details : Cartons / Pallets

Max current : 80-200A

Primary current : 10-30A

Secondary current : 5-15mA

Accuracy class : 0.1

DC immunity : Available

Anti-magnetic : Available

Turns ratio : Customized

Contact Now

3 phase current transfromer Nano + amourphous 60A core with plastic blue casing DC immune

Suitable for high precision, small phase error requirments of three-phase electric energy meters

More space in the meter can be saved with combined current transformer

Linear output current, high precision

Encapsulated with epoxy resion,with high insulation ability

It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters:

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
5 60 2 1:2500 0.1/0.2 ±3% unavailable 5Ω,10Ω,20Ω
5 60 2.5 1:2000 0.1/0.2 　
10 60 4 1:2500 0.1/0.2 ±3%
10 60 5 1:2000 0.1/0.2 　
10 60 10 1:1000 0.1/0.2 　
5 80 2 1:2500 0.1/0.2 ±3%
10 80 4 1:2500 0.1/0.2 ±3%
10 100 4 1:2500 0.1/0.2 ±3%
10 120 5 1:2000 0.1/0.2 　
　 　 　 　 　 　

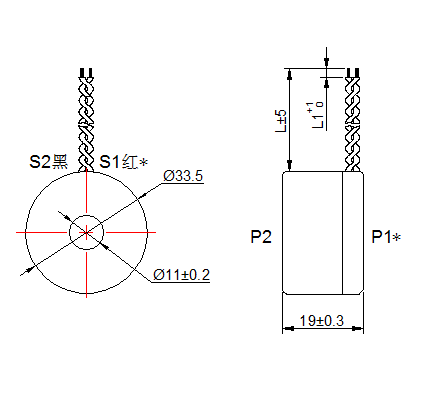

Diemsnion:
Plastic Blue Casing Nano Plus Amorphous Three Phase Core Type Transformer 60A
